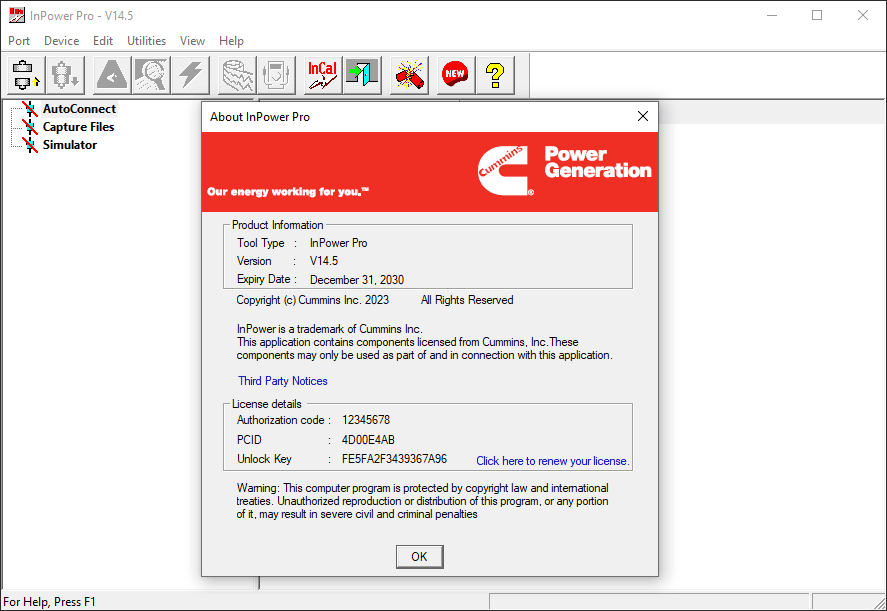

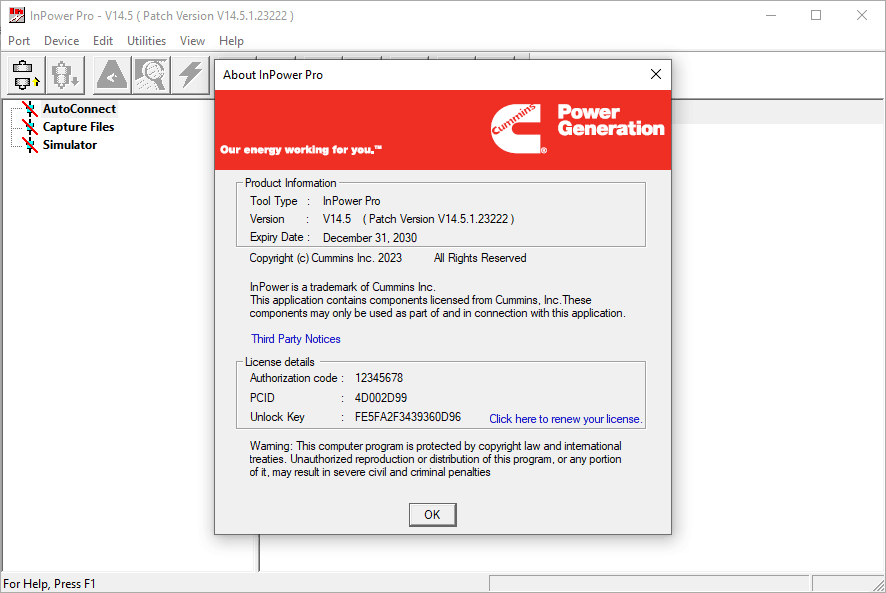

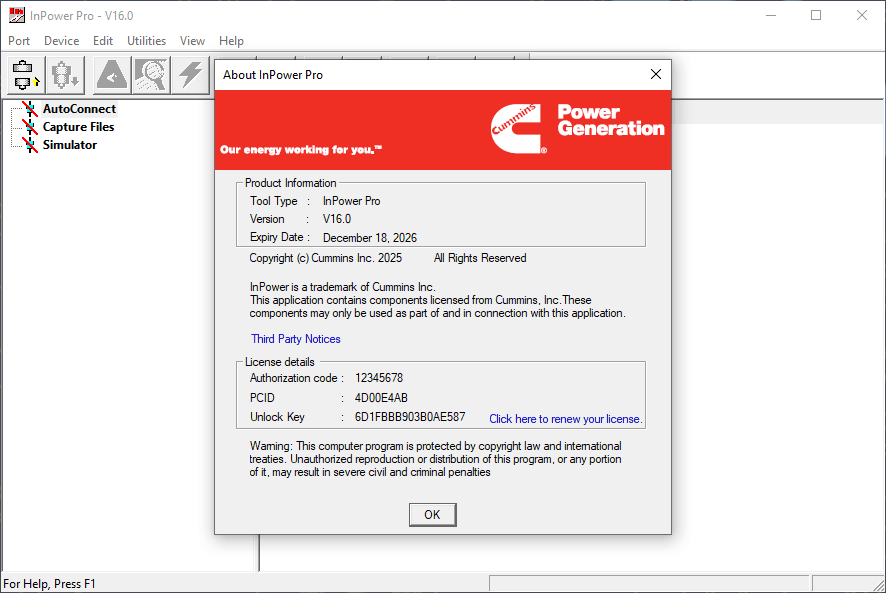

Cummins InPower Pro with WebIncal (PGA)

InPower is a Windows-based service and diagnostic tool. This tool provides electronic service functions including; adjustments for trims and settings, monitoring, strip chart, data logging, viewing faults, and report capability.

The tool can also be used to save a device’s parameter trims and settings to a file. The stored settings can be viewed off-line and they can be used to setup multiple installations of the same application controller type.

Incal files are also included (ECM Calibrations).

InPower provides the following functions for monitored equipment:
  • Direct connection capability from a personal computer to PowerCommand genset controls, transfer controls, and system controls; For details on devices supported refer Technical Details tab.
  • Connection to generator set or transfer switch controls via modem or to multiple controls.
  • Allows the monitored equipment to send alarm information to a connected computer.
  • Configurable for units of measurement, and level of user access (read only, read/change values, administrator).
  • Adjustment of nearly every adjustment parameter within the connected control system, including parameters such as voltage and frequency levels, gains, protection set-points and other values.
  • Convenient programming of configurable inputs in the controllers.
  • Viewing of equipment history, fault codes, and data associated with fault codes.
  • Generates reports of monitored data
  • Allows released firmware upgrades on Power Command genset controls.
  • Plot critical parameters in a strip chart format, and export data to 3rd party software tools for manipulation and viewing.
  • Simulate fault conditions in genset controls in compliance to NFPA 110 requirements todemonstrate functionality of the controller and monitoring equipment in a facility.

Devices Supported:

Commercial

ATS HMI211 PCC1100 LCD PCC3200 with CAN
AUX 101LBNG HMI211(MCM3320) PCC1300 PCC3300
AUX101 HMI220 PCC1300 LCD PS 0500
AUX107 HMI320 PCC1301 Universal Simulator
Core II ECS HMI400 PCC1302 PS0600
G-Drive MCC3320 PCC2100 MPC3332
HMECM MPC3330 PCC2300
HMI 113 NonGCP PCS PCC2300V2
HMI 114 Operator Panel PCC3200

Consumer
APU HQDLCD QD55 RavenValue_OTP
APU DPF LCD HQDTS QD75 Razor
APU LCD Marlin QD75_OTP Stealth
Coyote Marquis QDSA Stealth LCD
Equinox LCD MerlinLCD Ranger & QDSA  Arrow Air Cooled devices
HJBAA Microquiet_OTP RaptorInverter
HQD Inverter NIM Raven Commercial
HQDECM QD1012 RavenPremium
Product Name Cummins InPower Pro | WebIncal(PGA)
Date of update 12/2016 | 02/2017
Version
11.5 | v15.17
Discs price 190 EURO + shipping
Number of discs 1 x CD
Web download price 152 EURO
Web download size 206 MB
Languages English
Operating system (OS)
compatibility
Windows 7 32bit (x86), Windows 7 64bit (x64)
Windows 8 32bit (x86), Windows 8 64bit (x64)
Windows 10 32bit (x86), Windows 10 64bit (x64)
Expiration No expiration
Activation Not needed (unlimited installations on multiple computers)
