Allison DOC

The Allison DOC® (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, TC10 transmissions and transmissions using CEC5/CEC3/CEC2/CEC1 controls. This PC-based diagnostic program is capable of communicating with Allison 5th Generation Control System Module TCMs (1000/2000, 3000/4000, CEC5, and TC10), 4th Generation Control System Module TCMs (1000/2000, 3000/4000, and CEC3), WTEC II and WTEC III Electronic Control Units (ECU), 1000/2000 (Allison Pre-4th Generation Controls) TCMs, CEC2, and CEC1 Electronic Control Units (ECU).
Comes with Gen 5 Data Files (from 2016) used to connect to newer TCM's in order for reprogramming packages to be available
New Features and Enhancements included in V14.0.0

The Universal Allison DOC® V14.0.0 update includes the following new features/functions:

Updates specific to DOC For PC:
  • Adds support for 1/2/3/4000 5th Gen Controller and TC10 MY16 (B/C/D 161) changes
  • Adds support for Off-Highway CEC5 5th Gen Controller
  • Adds support for Windows 10 Operating System

Updates specific to DOC For PC (H 40/50 EP):
  • Adds support for H 40/50 EP MY16 changes
    • Adds new DTCs
    • Adds ESS3 battery pack hardware configurations
    • Adds 6D SID level recognition as MY16
  • Updates the Troubleshooting Manuals for H 40/50 EP Product Allison 4th Generation Controls
  • Adds support for Windows 10 Operating System
Product Name Allison DOC
Date of update 04/2016
Version
14.0.0
Discs price 125 EURO + shipping
Number of discs 1 x DVD
Web download price 125 EURO
Web download size 1,35 GB
Languages English, Deutsch, Espanol, Francais, Italiano, Portugues, Polski, Korean, Japanese, Chinese, Thai, Pусскии
Operating system (OS)
compatibility
Windows 7 32bit (x86), Windows 7 64bit (x64)
Windows 8 32bit (x86), Windows 8 64bit (x64)
Windows 10 32bit (x86), Windows 10 64bit (x64)
Expiration 1 year
Activation included 1 (for one PC)
Activation type Full - Aythorized Non-hybrid Reprogramming and TAC data
Additional activations 75 EURO for every next PC per year, or for additional year after expiration

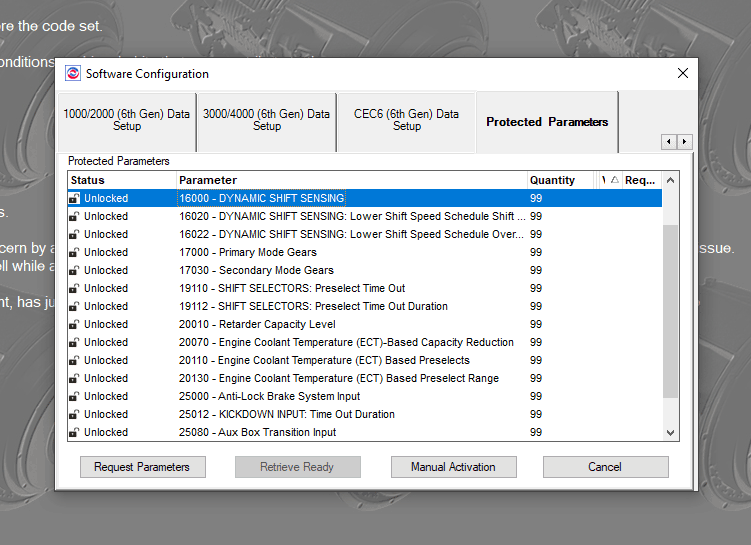

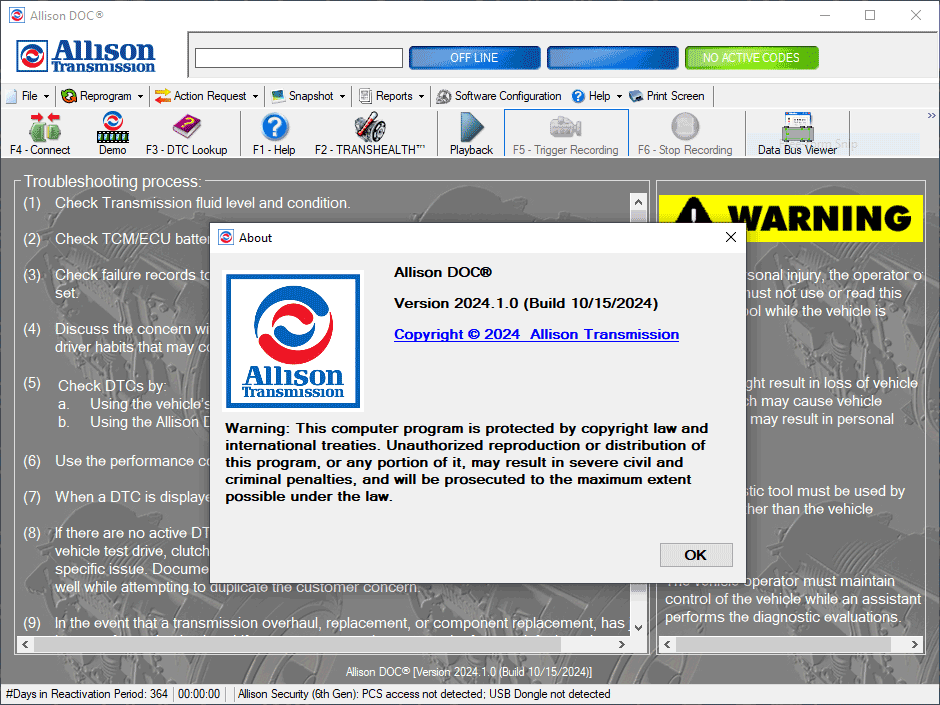

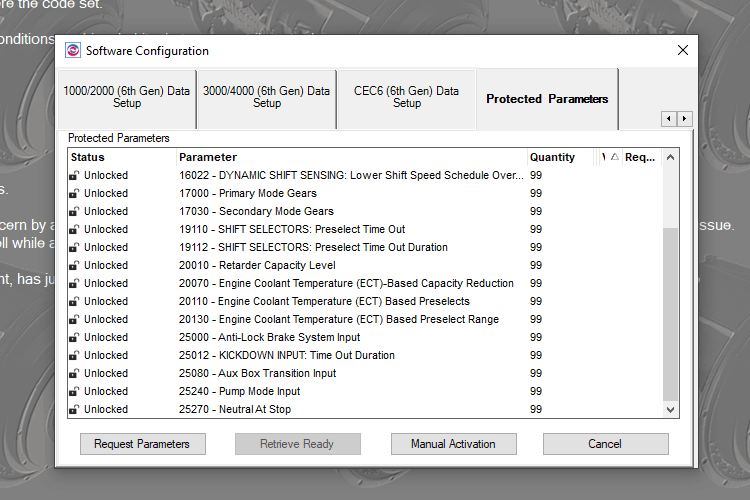

Click on image to enlarge
